Restrained white artwork route
The real folded edge keeps the artwork proof tied to the converted box, where pale star detail, logo contrast, fold registration, and surface protection can be approved.

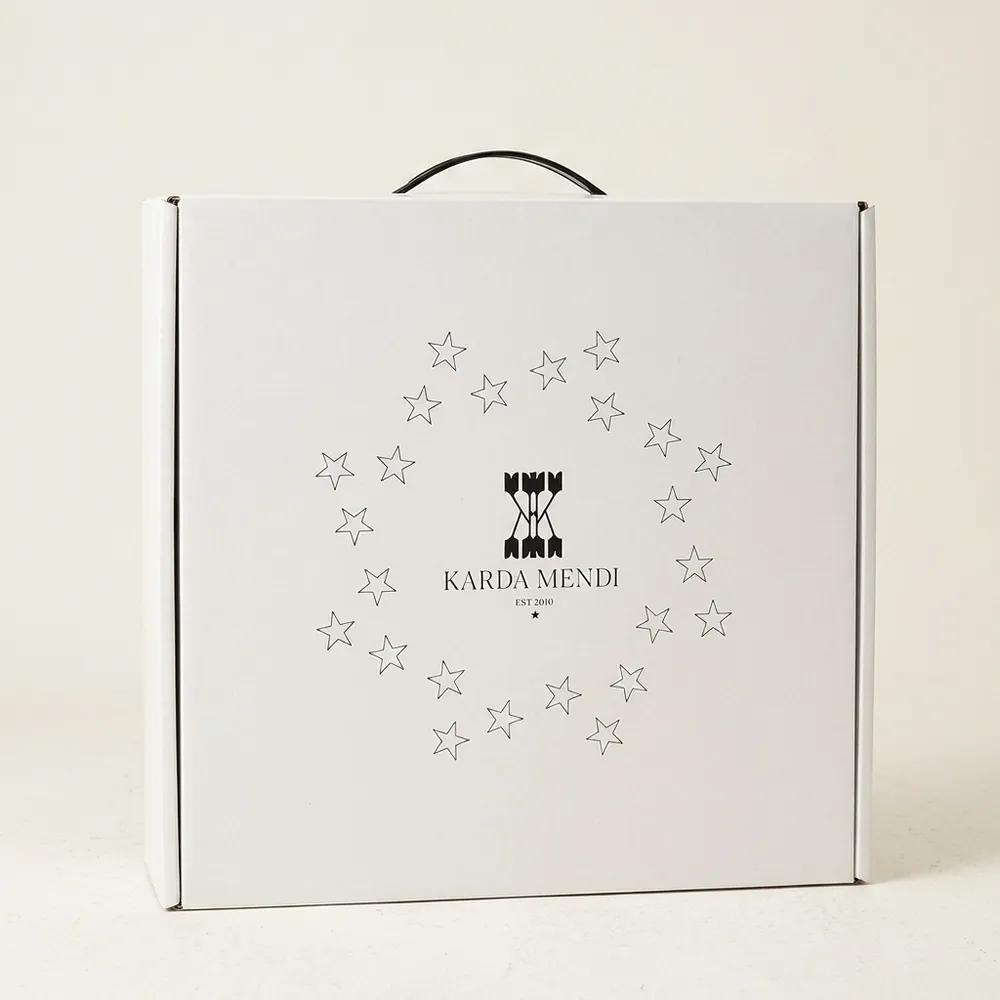

Carry-ready cap packaging
Custom Corrugated Hat Boxes With Handle
Custom corrugated hat boxes with a one-piece hinged mailer structure, a die-cut circular hat-support opening, a black plastic carry handle, and a clean white print surface for caps and structured headwear.
Structure route
One-piece hinged E-flute box designed for flat delivery and manual erection
Hat support
Internal deck with a size-specific circular die-cut opening
Carry and finish
Black plastic handle with matte white print and emboss or silver-foil options
Visual proof points
Inspect the structure before specifying custom corrugated hat boxes.
These approved views document the real box, insert opening, handle attachment, folds, and artwork surface. Hat fit and transit performance remain physical-sample decisions because no packed-hat reference was supplied.

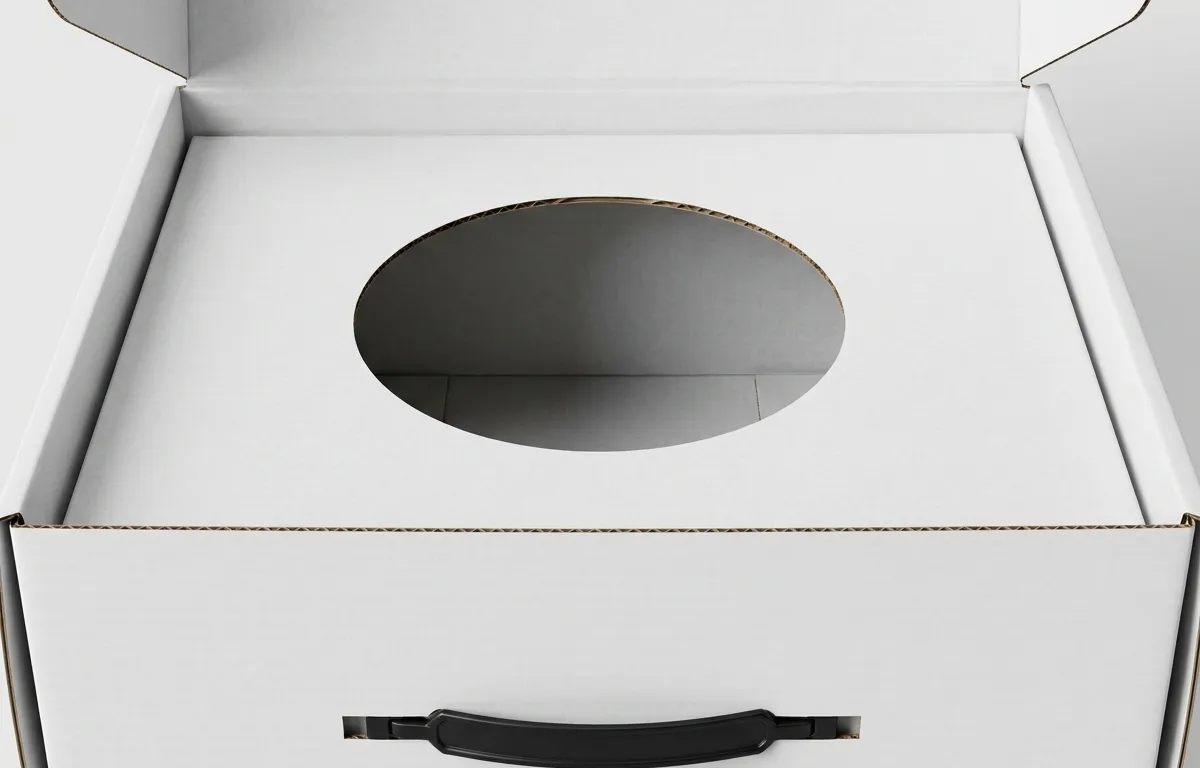

Landing page reference
The close view shows the circular die-cut support opening, full-depth walls, exposed flute edges, and handle position that must align when the box is erected.

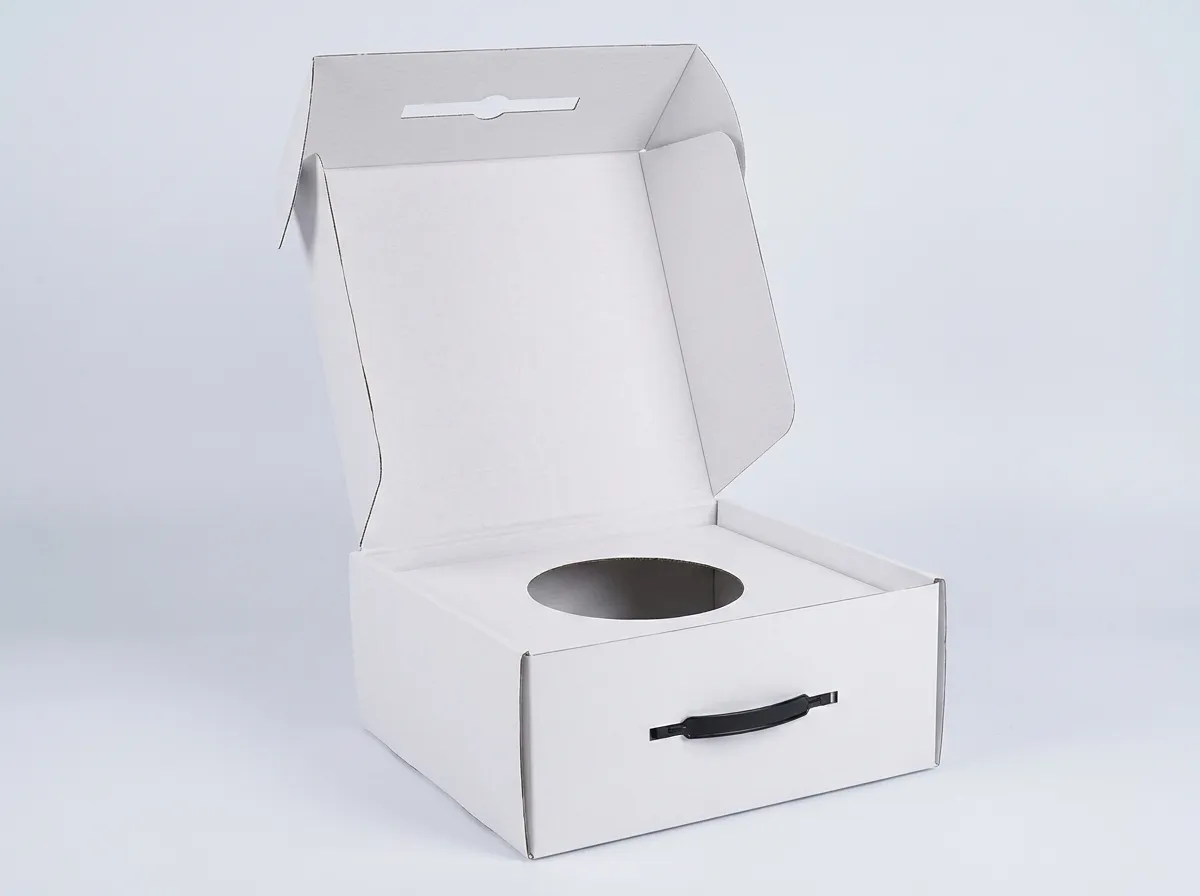

Structure reference
The open view confirms the fold-over lid, side flaps, lid lock slot, insert deck, and handle panel without introducing a separate base or loose lid.
Plastic handle attachment
Buyers can review the molded handle profile, two die-cut mounting slots, pull clearance, alignment, and the paper reinforcement needed for the packed load.
Hat-support opening
The circular opening is a size-sensitive support feature. Its diameter, deck height, edge finish, and clearance must be sampled around the selected hat form or support.
Customization options
Customization options for this handled hat box.
Compare the white liner, E-flute build, litho-laminated print route, surface protection, logo finish, and die-cut support around the actual cap or hat.
Material / Corrugated
E-flute
Thin corrugated profile for retail mailers, display boxes, and cleaner graphics.
Review this option
Material / Paperboard
SBS C2S
Double-side coated board when both inside and outside panels need a refined surface.
Review this option
Printing / Print Method
Offset Pantone
Spot color printing for strict brand color control and high-end customization.
Review this option
Printing / Print Method
Litho Lamination
Printed sheet laminated to corrugated board when mailers or displays need sharper retail graphics.
Review this option
Finishing / Surface
Matte Lamination
Low-sheen film finish for a calm premium surface with added protection.
Review this option
Finishing / Visual
Embossing
Raised detail that adds tactile emphasis to logos or decorative artwork.
Review this option
Finishing / Visual
Foil Stamping
Metallic foil detail in gold, silver, rose gold, or custom colors for premium marks.
Review this option
Inserts / Accessories & Linings
Die-cut Corrugated Insert
Custom-cut corrugated support for heavier products, kits, and ecommerce protection.
Review this optionPrint and finish route
How the artwork effect is produced.
The white face sheet, fine artwork, protective film, relief or metallic logo, converted folds, handle slots, and insert opening must be approved as one production system.
White litho-laminated exterior
A C2S white face sheet provides the smooth offset-printing surface before it is laminated to the E-flute structure.
Approve white point, ink target, liner adhesion, bubbles, scoring, edge registration, cracking, and shade consistency.
Matte-laminated surface
Matte film supports the clean low-sheen direction while helping control fingerprints and light handling marks.
Test scuffing, film adhesion, score whitening, corner lift, emboss response, and the material tradeoff against aqueous protection.
Emboss or shallow silver foil
Blind relief keeps the mark quiet, while silver foil gives the same artwork a brighter metallic hierarchy.
Proof the chosen route for line weight, pressure, depth, foil release, edge definition, placement, and fold clearance.
Artwork element
Production route
Effect on this box
Proofing check
Clean white outer field
White C2S face sheet with offset print before litho lamination
Creates an even bright base across the lid and wall panels.
Approve paper white, ink density, converted-edge exposure, lamination registration, and panel-to-panel consistency.
Logo and pale star artwork
Offset artwork with blind embossing or selected silver hot foil
Builds a restrained central hierarchy without covering the full white panel.
Confirm vector layers, minimum line weight, contrast, emboss depth or foil grade, and safe distance from scores.
Circular support opening
Registered die cutting through the internal corrugated deck
Creates the support interface used to locate the approved hat form.
Prototype opening diameter, edge quality, deck height, crown and brim clearance, removal, and movement with the real hat.
Handle slots and lid lock
Die cutting, creasing, slotting, handle fitting, and glue-free conversion
Forms the carry panel and closing system shown in the supplied reference.
Test slot alignment, paper tear risk, handle pull, lock engagement, folding sequence, reopening, and packed load.
Specification summary
Make this corrugated hat packaging quote-ready.
The supplied product direction establishes the board, handle, circular support opening, artwork, and finish routes. Dimensions and performance still require the real hat, support method, and physical sampling.
Packaging type
Custom corrugated hat boxes for baseball caps, bucket hats, streetwear headwear, gifting, retail handoff, and ecommerce programs
Structure
One-piece die-cut corrugated mailer-style box with hinged extended lid, side flaps, lid lock slot, front panel, and glue-free manual erection
Support feature
Pre-cut circular opening in the internal deck; diameter and deck height must match the intended hat support and packed headwear
Board direction
250 gsm white coated liner laminated to E-flute kraft corrugated board, subject to finished-size and packed-load approval
Exterior direction
Clean white offset-printed surface using a C2S coated face sheet for fine artwork and controlled color
Interior direction
Natural kraft corrugating medium and liner remain visible at converted edges and beneath the white presentation surfaces
Surface finish
Matte lamination baseline, with gloss lamination available for a brighter, more reflective surface route
Logo options
Blind embossing for restrained relief or shallow silver foil for a metallic accent, approved on the selected liner
Carry feature
Rigid black molded-plastic handle mounted through two die-cut panel slots with paper locking tabs
Quote drivers
Packed hat dimensions, support method, circular opening diameter, box depth, packed weight, board build, artwork, finish, quantity, and destination
Buyer decisions
Protect the hat shape without oversizing the parcel.
Crown height, brim width, support position, removal path, box depth, handle load, and the parcel route determine whether this E-flute structure is practical for the program.
Send these details for a quote.
Packed hat dimensions
Crown and brim profile
Hat support or former
Circular opening diameter
Packed weight
Artwork and finish layers
Quantity and sales channel
Delivery destination
250 gsm C2S over E-flute
Smooth white offset print with a compact corrugated profile
Total strength and surface flatness still depend on box size, load, flute build, and conversion
Matte-laminated white face
Low-sheen presentation and added handling protection
Adds film and requires checks for score whitening, corner lift, scuffing, and recovery requirements
Blind-embossed logo
Quiet tactile branding with minimal reflection
Relief visibility depends on paper, lighting, artwork scale, backing, pressure, and converted position
Shallow silver-foil logo
A clearer metallic focal point on the white panel
Adds tooling and requires control of release, pinholes, fine lines, placement, and rub behavior
Also suitable for
Baseball cap packagingBucket hat boxesStreetwear launch packagingHeadwear gift boxesRetail carry boxesEcommerce cap presentation
Proof before mass production
Packed-hat structural sample: Checks crown and brim clearance, circular opening fit, support stability, removal, lid closure, edge compression, and whether an outer shipper is needed.
Handle and lock trial: Checks mounting-slot alignment, paper tear risk, handle pull, carry comfort, lock engagement, reopening, and the approved packed load.
White print and finish proof: Checks white point, pale artwork visibility, logo hierarchy, lamination, scuffing, fold cracking, emboss depth or silver-foil quality.
Sampling and production path
From the real packed hat to an approved carry-box sample.
Treat the headwear, support opening, board depth, handle, lid lock, white artwork, finish, fulfillment, and parcel route as one packaging system.
1
Measure the packed hat
Record crown height, brim width and length, any support or tissue, removal direction, packed weight, and the largest SKU in the program.
2
Engineer the support deck
Set the circular opening diameter and deck height around the real hat support, then check stability, clearance, insertion, and removal.
3
Build the E-flute dieline
Tune overall depth, lid extension, side flaps, lock slot, handle slots, scores, exposed edges, and flat-delivery folding sequence.
4
Proof print and finishing
Approve the white liner, artwork contrast, matte film, blind emboss or silver foil, score behavior, and registration on a converted sample.
5
Validate packing and handling
Trial erection, support setup, hat loading, lid closure, carrying, labels, stacking, scuffing, and the complete delivery route before bulk release.
Structure reference
Use a full-depth corrugated hat mailer—not a shallow flat carton.
The reference is a one-piece hinged corrugated carry box with a raised support deck. Preserve its full wall depth and support geometry, then tune the opening, handle slots, lid lock, board, and finish around the packed hat.
Shape-led support
The raised die-cut deck creates a defined support interface so crown, brim, movement, and removal can be engineered around the real headwear.
Flat-delivery route
The one-piece die-cut structure can reduce inbound storage volume and is designed for manual erection without glue at pack-out.
Carry-ready presentation
The black plastic handle adds a handoff feature while the white print surface provides space for restrained fashion artwork.
Structure baseline
One-piece die-cut E-flute mailer-style hat box with hinged extended lid, side flaps, lock slot, internal support deck, and glue-free manual erection.
Support baseline
Circular die-cut opening developed around the approved hat support, crown and brim clearance, deck height, removal path, and packed movement.
Decoration direction
White offset-printed C2S face, matte lamination, and a blind-embossed or shallow silver-foil logo route.
Quote inputs
Packed hat dimensions, support method, opening diameter, weight, board build, handle load, artwork, finish, quantity, channel, and destination.
Details to prepare for factory review
Packed hat dimensions
Crown and brim profile
Hat support or former
Circular opening diameter
Packed weight
Artwork and finish layers
Quantity and sales channel
Delivery destination
Production FAQ
Questions before sampling this handled hat box.
What structure does this custom corrugated hat box use?
It uses a one-piece die-cut corrugated mailer-style structure with a hinged extended lid, side flaps, a lid lock slot, an internal support deck, and a plastic carry handle. It can be planned for flat delivery and glue-free manual erection.
How does the circular opening support a cap or hat?
The opening is intended to locate a selected hat support or the approved packed hat form. Its diameter, deck height, brim clearance, crown clearance, and removal path must be developed from the real headwear and confirmed with a packed sample.
Is E-flute suitable for this hat packaging box?
E-flute is the supplied baseline because its fine profile supports a smoother printed face while adding corrugated caliper. Final board strength still depends on the finished dimensions, packed weight, stacking, handling, and shipping route.
Can the white hat box use embossing or silver foil?
Yes. Blind embossing can create a low-reflection relief effect, while shallow silver foil adds metallic contrast. Artwork line weight, position near scores, die pressure, foil release, and the laminated surface should be checked on a converted sample.
Can the box be supplied flat?
The one-piece die-cut construction is intended for flat delivery and manual erection without glue during packing. Confirm the folding sequence, insert-deck setup, lock engagement, handle installation, and packing speed during sampling.
Can this box ship directly through a parcel network?
That cannot be decided from appearance alone. Board grade, box size, packed load, lid security, handle slots, artwork scuffing, carrier handling, and whether a clean gift surface is required determine if an outer shipper is needed.
What details are needed for a corrugated hat box quote?
Send the packed hat length, width and height, crown shape, brim dimensions, intended support method, circular opening requirement, packed weight, order quantity, artwork, finish choice, sales channel, and delivery destination.
What should be checked on the physical sample?
Check crown and brim clearance, circular opening fit, support stability, removal, box depth, lid locking, handle pull, slot reinforcement, erection speed, edge crush, artwork registration, lamination, embossing or foil quality, and the complete packed handling route.
