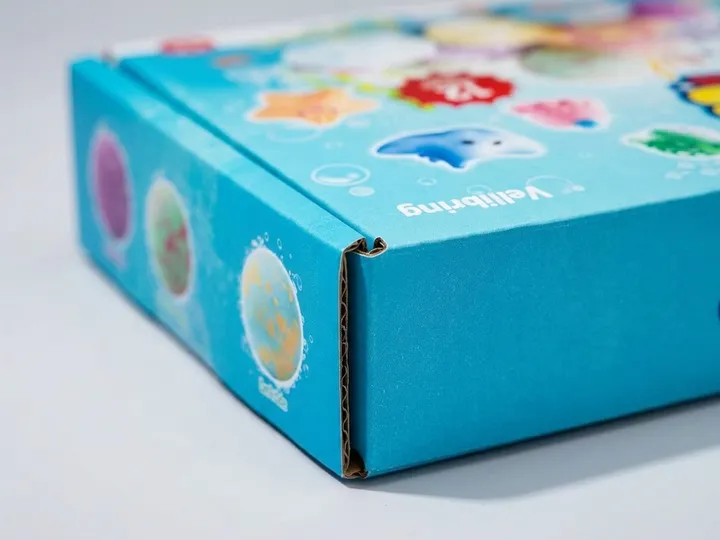

150/140E/125 board edge
The exposed edge confirms the white-card print liner, fine E-flute medium, and kraft inner liner as one laminated corrugated structure.
Bath bomb E-flute mailer solution
Custom Bath Bomb Mailer Boxes
A 12-piece bath bomb gift-set box built from litho-laminated E-flute corrugated board, with bright CMYK artwork, matte lamination, a kraft interior, and a fold-over mailer structure.
Pack format
Shallow mailer presentation for 12 spherical bath bombs
Board build
150gsm white card + 140gsm E-flute medium + 125gsm kraft liner
Print and finish
Full-color CMYK artwork with overall matte lamination
Visual proof points
Inspect the board, print, closure, and 12-piece fit.
These views isolate the 150/140E/125 E-flute construction, matte CMYK surface, kraft interior, exposed edge, opening structure, and direct bath bomb pack-out.

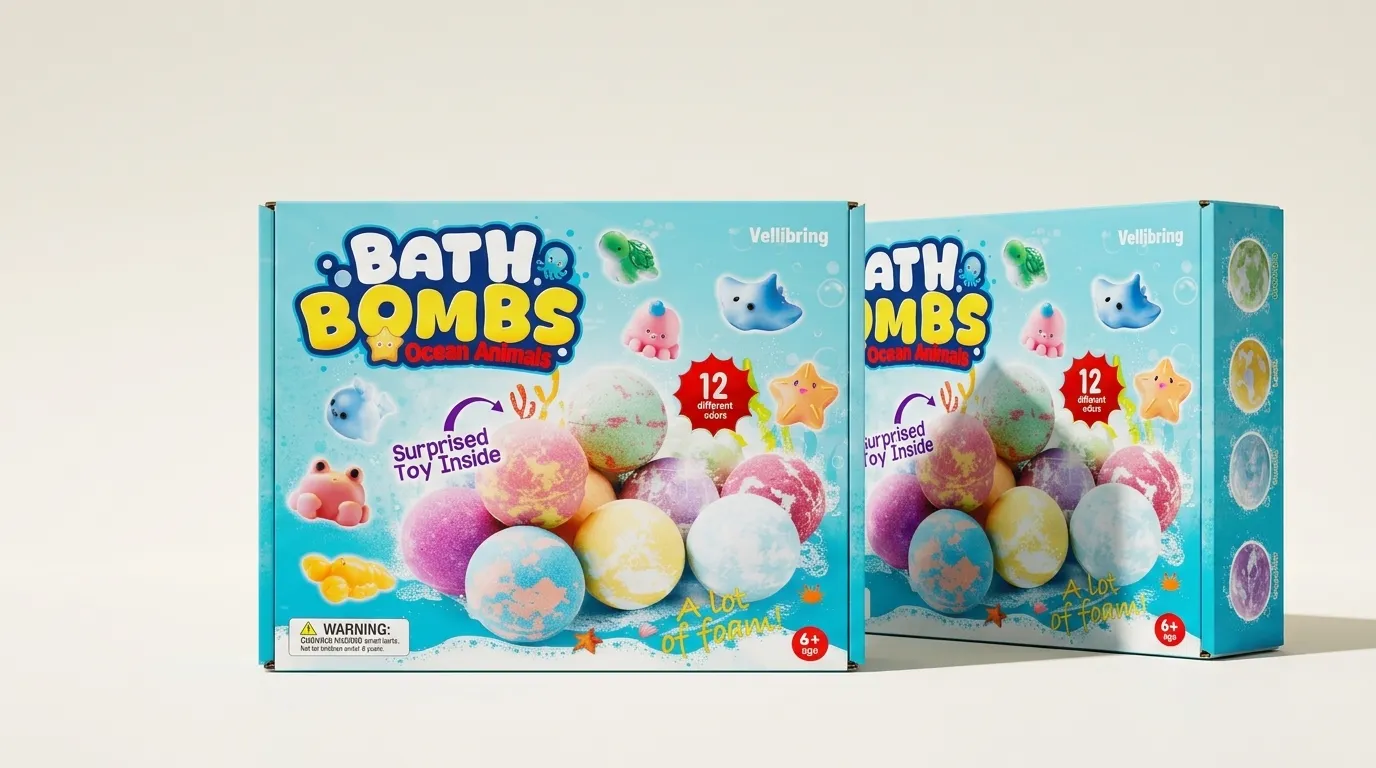

Landing page reference
The paired view shows the shallow E-flute profile, front artwork hierarchy, side-panel graphics, and retail-facing box depth.

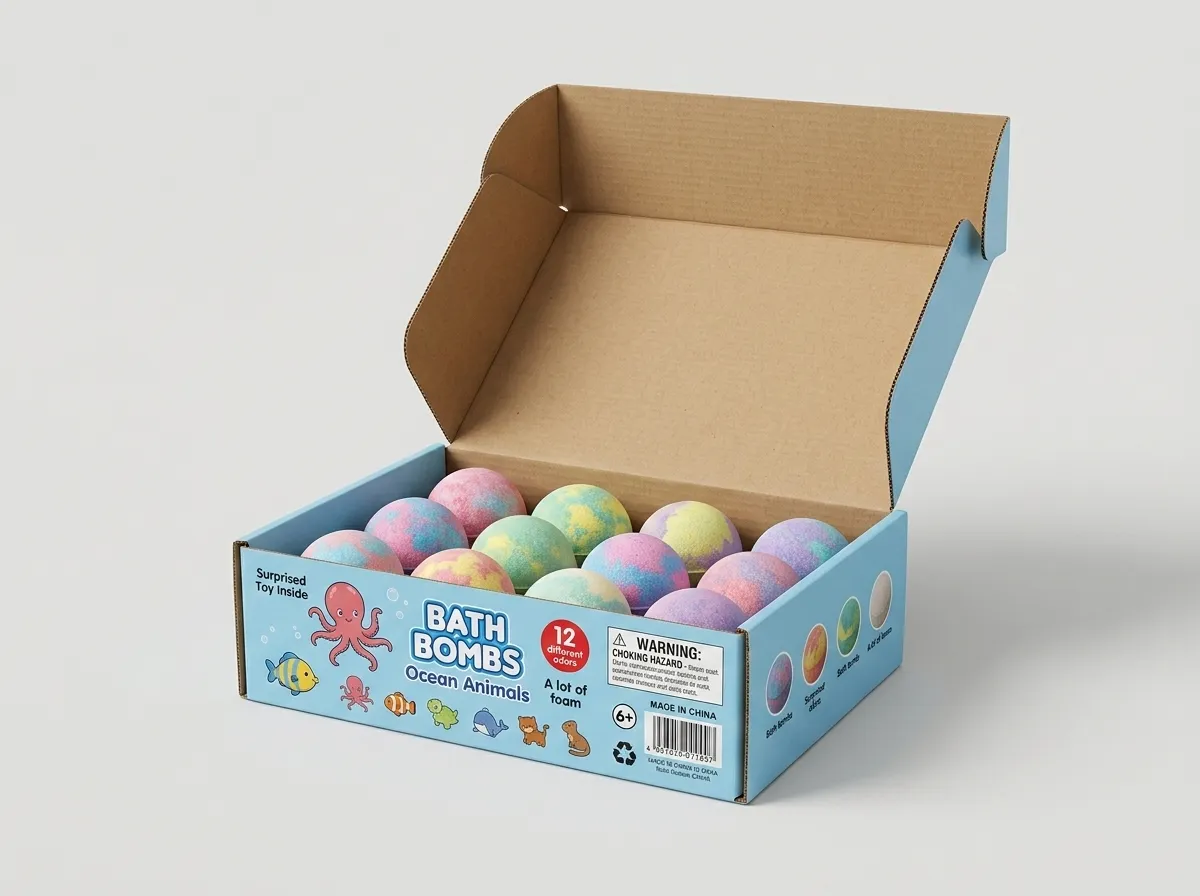

Structure reference
The open view makes the fold-over lid, side walls, front panel, natural kraft liner, and direct 12-piece pack-out visible.

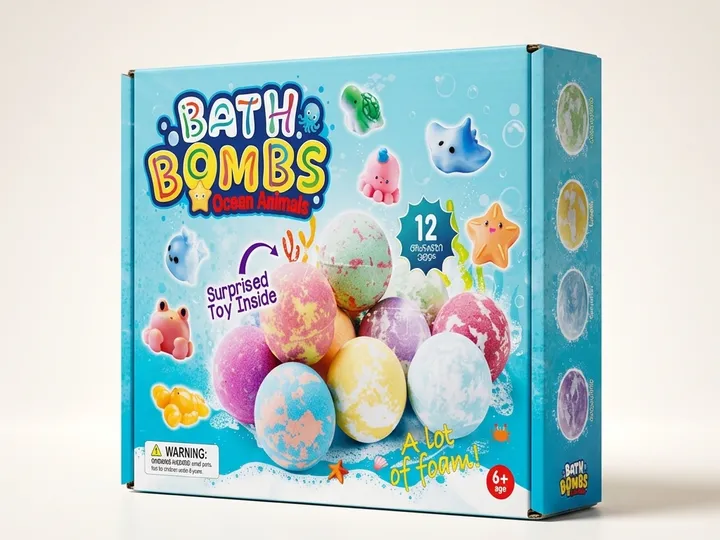

CMYK artwork under matte film
A physical proof should confirm blue consistency, small-copy legibility, fold cracking, matte-film adhesion, and registration across every panel.

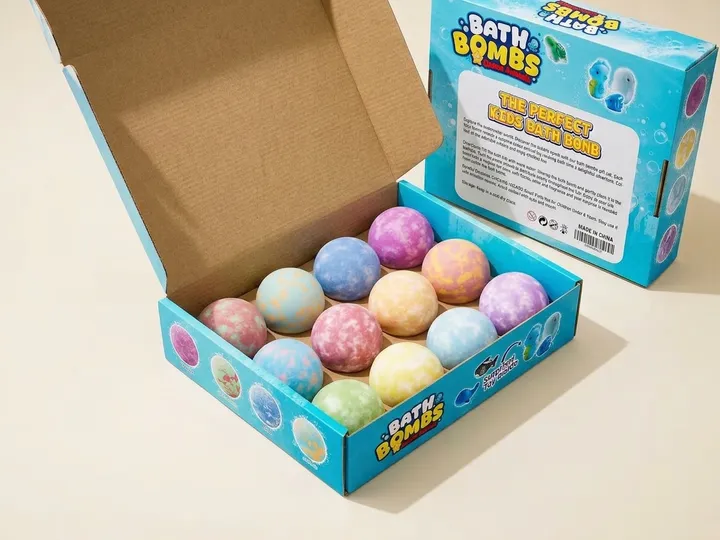

12-piece product fit
Test the real wrapped bath bombs for diameter, movement, powder transfer, lid clearance, and bottom-panel load before production.
Customization options
Customization options for this bath bomb mailer.
Compare the confirmed E-flute, litho-laminated CMYK, matte surface, and optional product-separation routes around the real wrapped bath bombs.
Material / Corrugated
E-flute
Thin corrugated profile for retail mailers, display boxes, and cleaner graphics.
Review this option
Printing / Print Method
Litho Lamination
Printed sheet laminated to corrugated board when mailers or displays need sharper retail graphics.
Review this optionPrinting / Print Method
Offset CMYK
Four-color offset printing for detailed artwork and consistent production quality.
Review this option
Finishing / Surface
Matte Lamination
Low-sheen film finish for a calm premium surface with added protection.
Review this option
Inserts / Accessories & Linings
Die-cut Corrugated Insert
Custom-cut corrugated support for heavier products, kits, and ecommerce protection.
Review this option
Inserts / Accessories & Linings
Molded Pulp
Paper pulp tray for eco-led protective packaging and egg-tray style product support.
Review this optionPrint and finish route
How the artwork effect is produced.
The packaging combines a lightweight E-flute structure with high-coverage retail graphics and a matte exterior, so board conversion and artwork proofing must be reviewed together.
Litho-laminated E-flute board
A 150gsm printed white-card sheet is laminated to 140gsm E-flute medium and a 125gsm kraft liner for fine graphics with a stronger shallow-box structure.
Approve total caliper, flute consistency, liner adhesion, exposed edges, crease compression, and packed-box stiffness.
Full-color CMYK artwork
Offset-printed artwork supports the blue ocean field, multicolor bath bomb imagery, characters, instructions, and product-variation panels.
Proof blue density, small text, warning-panel space, barcode quiet zones, and color consistency across repeat orders.
Overall matte lamination
Matte film lowers glare and improves scuff resistance and limited surface-moisture tolerance on the printed exterior.
Test film adhesion and fold cracking; the finish does not replace sealed primary wrapping for moisture-sensitive bath bombs.
Artwork element
Production route
Effect on this box
Proofing check
Ocean-blue background
CMYK offset print on 150gsm white card
Creates a consistent high-coverage retail field before the sheet is laminated to E-flute.
Set color tolerances from an approved physical proof rather than a screen image.
Characters and bath bomb images
High-resolution CMYK artwork
Separates scents or variants while keeping the front panel energetic and easy to scan.
Confirm image resolution, trapping, small outlines, and legal ownership of all artwork.
Directions and warnings
Reserved high-contrast copy panels
Keeps required product information separate from the illustrated sales graphics.
The buyer must supply and approve market-specific wording, age marks, barcode, and compliance copy.
Scores and exposed edges
Die cutting and creasing after litho lamination
Forms the lid hinge, side locks, front closure, and shallow product tray.
Review fold cracking, liner lift, flute crush, slot fit, and repeated opening on a packed sample.
Specification summary
Quote-ready custom bath bomb mailer box specifications.
The material stack and finish are confirmed; final production still depends on the wrapped product, finished dimensions, artwork, pack-out, quantity, and delivery route.
Packaging type
Custom bath bomb mailer boxes for a 12-piece retail or gift-set pack-out
Structure
One-piece fold-over E-flute mailer with hinged lid, locking side walls, and front tuck closure
Outer liner
150gsm white card used as the litho-printed presentation sheet
Fluting medium
140gsm E-flute corrugating medium
Inner liner
125gsm natural kraft liner, unprinted in the shown reference
Print route
Full-color CMYK offset print on the outer sheet before litho lamination
Surface finish
Overall matte lamination on the printed exterior
Current pack-out
Twelve spherical bath bombs placed directly in the shallow tray; no separate insert is shown
Primary protection
Bath bombs should use a suitable sealed primary wrap because matte film does not make the corrugated box moisture-proof
Quote drivers
Finished size, bath bomb diameter and weight, board caliper, artwork coverage, matte film, quantity, pack-out, and delivery destination
Buyer decisions
Choose product separation by movement and channel.
The reference uses a direct 12-piece layout, but the real product diameter, wrapping, weight, dust, rubbing, breakage risk, and parcel route decide whether an insert is justified.
Send these details for a quote.
Wrapped bath bomb diameter
Unit and packed weight
Set count
Finished box size
Artwork file
Target quantity
Insert preference
Delivery destination
Direct 12-piece pack-out
A compact retail layout when individually wrapped spheres fit closely
Needs movement, rubbing, dust, and bottom-load testing
Paperboard dividers
Separating colors or scents and reducing product-to-product contact
Adds assembly steps and consumes internal clearance
Die-cut corrugated insert
More positive location for heavier or parcel-shipped sets
Increases board use, depth, tooling, and packing work
Molded pulp tray
A formed paper-fiber cavity route at suitable volume
Tooling, texture, tolerance, and removal feel require sampling
Also suitable for
Bath fizzer setsKids bath gift setsSpa sampler boxesSeasonal bath collectionsSoap and bath kitsBeauty launch mailers
Proof before mass production
Board sample: Confirms the 150/140E/125 construction, total caliper, liner adhesion, matte film, and fold behavior.
Packed fit test: Checks real product diameter, wrapped weight, movement, rubbing, lid clearance, and bottom support.
Artwork proof: Checks blue consistency, character detail, small copy, barcode area, and registration before lamination.
Sampling and production path
From wrapped product measurements to approved production.
The bath bombs, E-flute board, printed liner, matte film, closure, pack-out, and outer shipping plan should be approved as one packed system.
1
Confirm the wrapped product
Record the finished diameter, unit weight, wrapping method, dust risk, scent set, and total count for the real saleable bath bombs.
2
Lock the 150/140E/125 board
Approve the white-card liner, E-flute medium, kraft liner, finished caliper, crease behavior, and box stiffness with a material sample.
3
Build the pack-out prototype
Test the direct 12-piece layout first, then compare dividers or a fitted insert if movement, rubbing, or breakage is unacceptable.
4
Proof print and matte film
Approve CMYK color, small copy, artwork ownership, matte level, film adhesion, scuffing, and fold cracking on the converted board.
5
Validate handling and shipping
Check closure hold, repeated opening, packed bottom load, stacking, outer-shipper needs, and arrival condition before mass production.
Structure reference
Why this bath bomb set uses an E-flute mailer.
Use the confirmed E-flute mailer as the baseline, then validate closure hold, bottom load, product movement, artwork durability, and the outer shipping requirement with a packed sample.
Fine-flute presentation
E-flute provides a cleaner litho-laminated print surface and slimmer profile than heavier shipping flutes while adding stiffness beyond a folding carton.
One-piece opening sequence
The hinged lid, side walls, and front closure create a broad reveal for the full color set without a separate rigid lid.
Flat production footprint
The die-cut structure can be supplied flat or pre-glued according to the final packing workflow, helping control storage and assembly volume.
Structure baseline
One-piece fold-over E-flute mailer with locking side walls, front tuck closure, kraft interior, and a shallow 12-piece layout.
Confirmed material
150gsm white-card outer liner, 140gsm E-flute corrugating medium, and 125gsm kraft inner liner.
Confirmed decoration
Full-color CMYK printed outer sheet with overall matte lamination, litho-laminated before die cutting and creasing.
Quote inputs
Wrapped diameter, unit and packed weight, count, finished size, artwork, quantity, insert requirement, sales channel, and destination.
Details to prepare for factory review
Wrapped bath bomb diameter
Unit and packed weight
Set count
Finished box size
Artwork file
Target quantity
Insert preference
Delivery destination
Production FAQ
Questions buyers ask before sampling.
What material is used for these custom bath bomb mailer boxes?
The confirmed board combines a 150gsm white-card outer liner, 140gsm E-flute corrugating medium, and 125gsm kraft inner liner. The printed outer sheet is laminated to the E-flute structure before converting.
How are the bath bomb box graphics printed?
The outer white-card sheet uses full-color CMYK printing for the blue background, product imagery, characters, directions, and variant graphics, followed by litho lamination to the corrugated board.
What does matte lamination do on this box?
Overall matte lamination reduces glare and improves exterior scuff resistance and limited surface-moisture tolerance. It does not make the package waterproof or replace sealed primary wrapping.
Does the 12-piece bath bomb box need an insert?
The shown pack-out places the bath bombs directly in the shallow tray. Whether it needs dividers or an insert depends on wrapped diameter, product weight, movement, rubbing, breakage risk, and shipping channel.
Can this E-flute box ship without an outer carton?
That decision requires a packed transport test. A clean retail presentation box may still need an outer corrugated shipper to protect artwork, corners, closures, and moisture-sensitive contents during parcel handling.
What information is needed to quote custom bath bomb mailer boxes?
Send the wrapped bath bomb diameter, unit weight, set count, finished box size if known, artwork file, target quantity, matte-film requirement, insert preference, sales channel, and delivery destination.
Can the inside of the bath bomb box be printed?
Yes, but the reference uses an unprinted 125gsm kraft inner liner. Inside printing changes the liner and production route, so coverage, color expectations, cost, and fold performance should be reviewed separately.
Which details should be checked on the physical sample?
Check bath bomb clearance, movement, bottom load, closure hold, flute crush, fold cracking, liner adhesion, matte-film adhesion, CMYK color, small-copy legibility, and fit inside the outer shipper.
