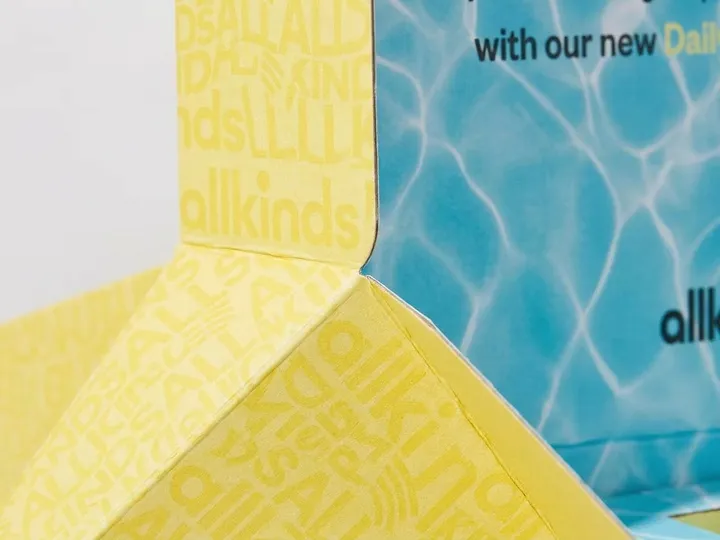

Print and matte fold detail
This real fold transition helps review CMYK color, repeated-letter registration, water-pattern detail, matte sheen, score behavior, and edge alignment.
E-flute mailer and one-piece insert
Custom Skincare Ecommerce Mailer Kit With Corrugated Insert
A lightweight ecommerce-ready skincare kit combining an E-flute fold-over mailer, 250gsm white-card print face, yellow and blue full-color artwork, matte lamination, and a one-piece die-cut corrugated insert that positions five products without greyboard or foam.
Outer box
E-flute mailer with 250gsm white-card face and full-color inside/outside print
Insert route
One-piece E-flute die-cut support with five fitted product openings
Finish route
Four-color offset print, matte lamination, mounting, die cutting, and forming
Visual proof points
Approve the print, folds, corrugated insert, and five-product fit.
These five views separate the purchasing decisions behind the kit: repeat mailer format, hinged opening, yellow-to-blue print transition, one-piece corrugated cavities, and clearance around the real skincare assortment.

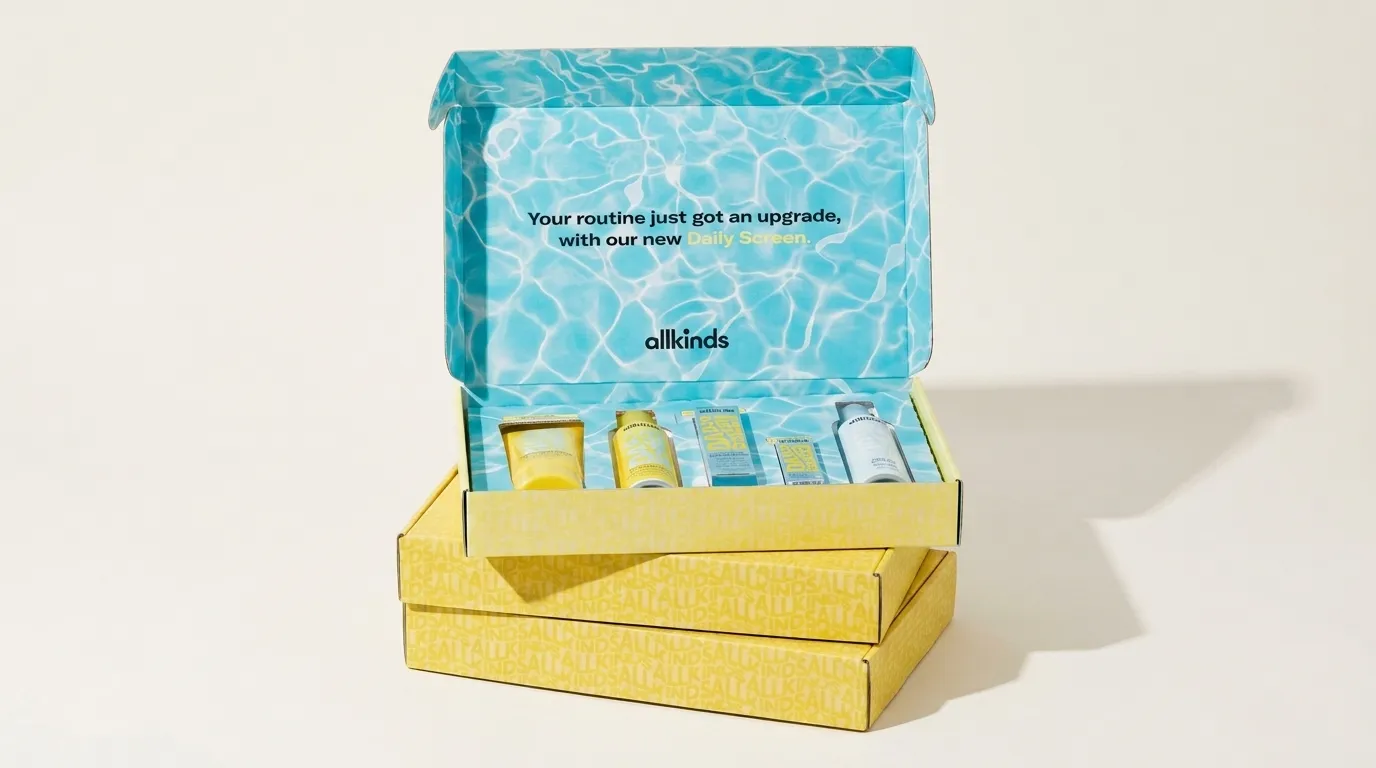

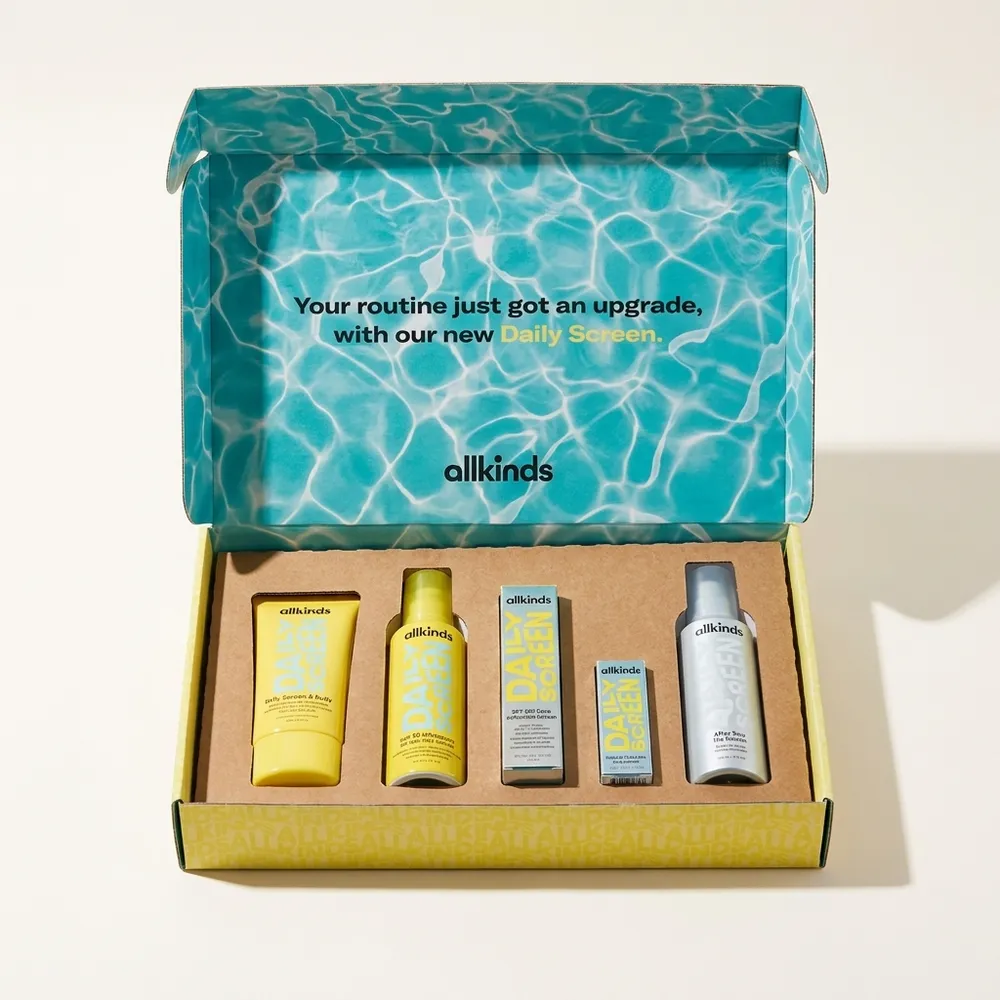

Landing page reference
The arrangement establishes the hinged mailer profile, yellow exterior, blue printed interior, product presentation, and repeat-box footprint buyers should approve for storage and fulfillment.

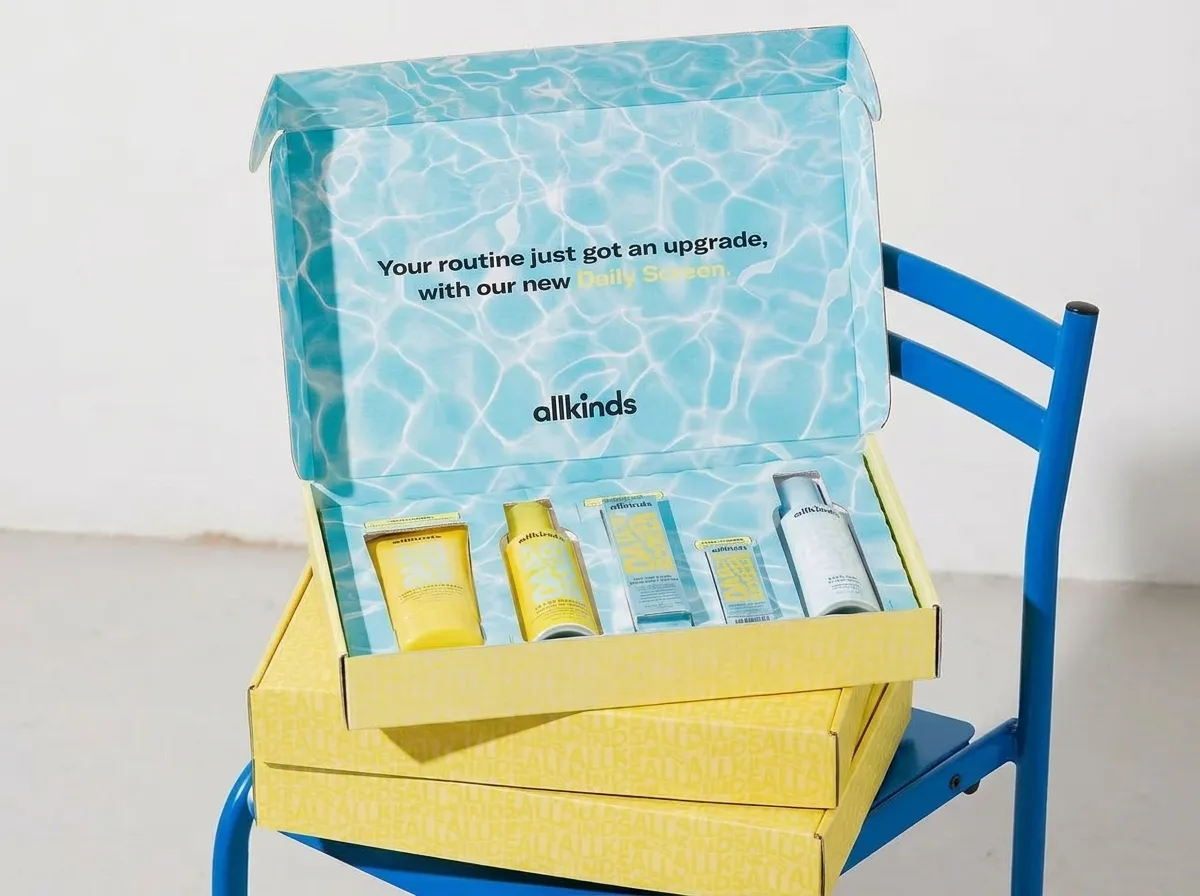

Structure reference
The open view shows the fold-over lid, side flaps, tray walls, printed interior, front edge, and product layout without inventing an unseen bottom or teardown view.

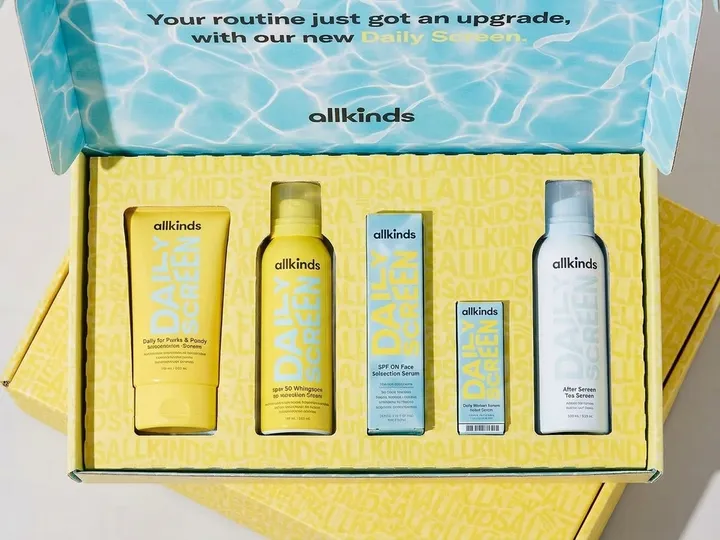

Integrated corrugated insert
The close view isolates five product-shaped openings cut from one corrugated support sheet, allowing buyers to review cavity shape, spacing, edge exposure, and removal clearance.

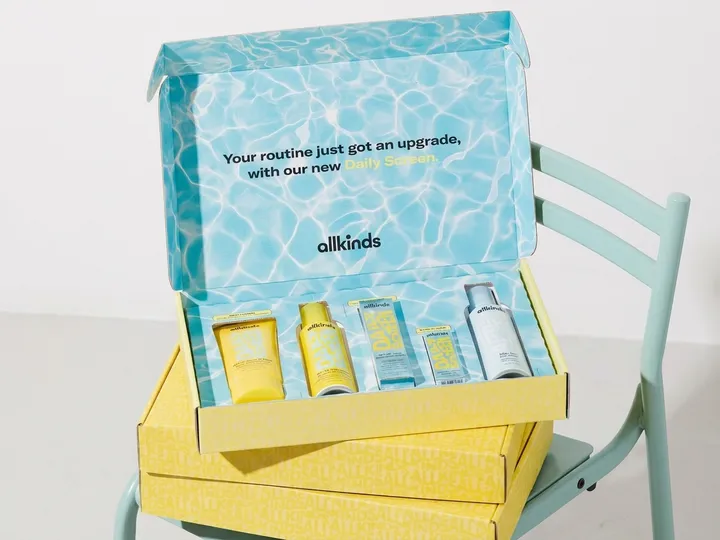

Five-product fit approval
The packed view confirms the intended five-piece order. Production dimensions must follow each real container, cap, carton, filled weight, tolerance, and removal path.
Customization options
Configure the mailer and insert as one packed system.
Compare flute strength, litho-laminated print, matte surface protection, and die-cut corrugated support after all product dimensions, filled weights, and delivery conditions are confirmed.
Material / Corrugated
E-flute
Thin corrugated profile for retail mailers, display boxes, and cleaner graphics.
Review this option
Material / Corrugated
EB-flute
Combined flute structure for extra support when products need reinforced protection.
Review this option
Printing / Print Method
Litho Lamination
Printed sheet laminated to corrugated board when mailers or displays need sharper retail graphics.
Review this optionPrinting / Print Method
Offset CMYK
Four-color offset printing for detailed artwork and consistent production quality.
Review this option
Finishing / Surface
Matte Lamination
Low-sheen film finish for a calm premium surface with added protection.
Review this option
Inserts / Accessories & Linings
Die-cut Corrugated Insert
Custom-cut corrugated support for heavier products, kits, and ecommerce protection.
Review this optionPrint and finish route
How the artwork effect is produced.
The design depends on saturated yellow outside coverage, a detailed blue water-pattern interior, small English copy, matte film, and accurate cavity alignment, so print and conversion must be approved together.
Offset CMYK on 250gsm white card
The coated white face supports the yellow repeat pattern, blue water graphic, product copy, and cleaner full-color detail before mounting.
Approve color targets, total ink coverage, small-copy clarity, sheet consistency, and artwork clearance from scores and cuts.
Matte laminated printed surface
The specified film controls glare across broad yellow and blue panels while adding a handled surface over the mounted print.
Test film bond, sheen, rubbing, scratching, fold whitening, score cracking, edge lift, and label adhesion.
Printed one-piece corrugated insert
The insert continues the kit artwork while the die-cut E-flute sheet positions five differently shaped products.
Approve print orientation, cavity registration, exposed edges, loading force, retention, removal, and compression under the lid.
Artwork element
Production route
Effect on this box
Proofing check
Yellow outer panels
Four-color offset print, matte lamination, and litho mounting
Full yellow coverage with a restrained repeating letter pattern.
Set the yellow standard and review banding, color shift, score placement, corner wear, and panel-to-panel alignment.
Blue inner lid and walls
CMYK water-pattern artwork with approved English copy
A high-contrast branded reveal behind the fitted skincare products.
Check text orientation, blue consistency, highlight detail, inside registration, liner bond, and cracking at the lid score.
Five insert cavities
One-piece corrugated die cutting from verified product data
Positions tubes, bottles, pumps, and cartons without specified foam or greyboard.
Review tolerances, grain and flute direction, nick points, edge crush, loading, retention, and finger-removal access.
Mailer locks and formed panels
Die cutting, creasing, gluing or locking, and erection trial
Keeps the tray square and the hinged lid aligned for fulfillment.
Confirm the unseen bottom construction on the converter drawing, then test erection, closing force, stacking, and flat-delivery condition.
Specification summary
Quote-ready specification for the skincare ecommerce mailer kit.
The buyer has supplied the intended material and process route. Final dimensions, board combination, dielines, cavity tolerances, glue areas, packed performance, quantity, and logistics still require samples and production approval.
Packaging type
Custom skincare ecommerce mailer kit for a five-piece product set, launch bundle, starter routine, refill program, or direct-to-consumer shipment
Outer structure
Fold-over corrugated mailer with hinged lid, side flaps, tray walls, and a self-locking formed-box route supplied by the buyer for production review
Board baseline
E-flute corrugated board as the standard route, with BE-flute available for review when packed weight, stacking, or transit conditions require reinforcement
Face paper
250gsm white card mounted to corrugated board, subject to converted-sample approval for caliper, adhesion, scores, edges, and finished strength
Printing
Four-color offset artwork with full yellow exterior coverage, repeated letter pattern, and blue water-pattern graphics and English copy inside
Surface finish
Matte lamination over the printed face, with gloss level, rub resistance, fold cracking, liner bond, and label adhesion checked on a physical proof
Insert
One-piece E-flute corrugated insert die-cut with five product cavities; no greyboard, EVA foam, or hollow frame is specified
Fit requirement
Each opening follows the real tube, bottle, pump, and carton dimensions plus tolerances for loading, retention, cap clearance, and removal
Production route
Offset printing, lamination, sheet-to-corrugated mounting, die cutting, insert conversion, gluing or forming as required, packing trial, and final assembly approval
Main price drivers
Finished size, E- or BE-flute build, white-card grade, print coverage, lamination, insert tooling, packed weight, quantity, test plan, and destination
Buyer decisions
Balance print quality, insert fit, and parcel performance.
The final construction depends on all five filled products, handling risk, box size, E- or BE-flute choice, insert retention, assembly time, dimensional freight, and whether this presentation box ships directly or inside an outer carton.
Send these details for a quote.
All five product dimensions
Filled product weights
Physical samples or CAD drawings
Artwork files and color targets
E- or BE-flute preference
Target quantity
Direct-ship or outer-carton route
Delivery destination
E-flute mailer and insert
Cleaner printed presentation and a relatively compact lightweight kit
Packed strength and edge crush still require route-specific testing
BE-flute outer mailer
Heavier sets, stacking, or added distribution strength
Adds caliper, storage volume, conversion constraints, and dimensional freight
250gsm white-card litho face
Detailed yellow and blue offset artwork
Requires mounting, alignment, score, film, and edge-quality controls
One-piece corrugated insert
Paper-based positioning without greyboard or foam
Each cavity needs accurate product data, tooling, fit trials, and exposed-edge approval
Also suitable for
Skincare starter routinesSunscreen kitsBeauty launch bundlesDTC refill setsInfluencer sampling kitsTravel-size product sets
Proof before mass production
Converted color sample: Checks yellow and blue targets, matte sheen, copy, mounting, inside/outside registration, scores, corners, edge lift, rubbing, and cracking.
Five-product fit sample: Checks every cavity, loading direction, retention, cap and pump clearance, finger access, removal, insert lift, lid pressure, and packing time.
Packed transit trial: Checks locks or glue areas, labels, stacking, compression, drops, vibration, scuffing, cavity wear, product movement, and arrival condition.
Sampling and production path
From product measurements to a repeatable ecommerce kit.
Treat the five products, corrugated insert, outer mailer, printed face, matte film, assembly workflow, and delivery route as one engineered pack.
1
Measure every packed item
Record maximum dimensions, filled weight, cap and pump profiles, carton tolerances, label areas, orientation, and removal needs for all five products.
2
Engineer mailer and cavity dielines
Set internal size, E- or BE-flute build, self-locking or glued areas, insert flute direction, cavity clearances, supports, and finger access.
3
Proof print and lamination
Approve the yellow and blue color standards, English copy, matte sheen, mounting, registration, scores, edges, and film behavior on converted board.
4
Run assembly and packed tests
Time erection and loading, then test insert retention, closing, stacking, labels, compression, handling, transit, and customer product removal.
5
Lock the production handoff
Confirm dielines, materials, color files, matte film, tooling, tolerances, packing standard, quantities, master cartons, tests, and destination.
Structure reference
Why this ecommerce kit uses a corrugated mailer and insert.
Use the mailer as the printed shipping-and-reveal baseline, then validate its bottom construction, board strength, one-piece insert fit, assembly speed, product protection, dimensional freight, and delivery route.
Presentation shell and fitted support
The hinged printed mailer creates the reveal while the corrugated insert positions five products without adding a thick greyboard box or foam tray.
One material family for structure
Using corrugated board for both the outer box and insert simplifies the structural concept, although face papers, films, adhesives, and disposal claims still require separate review.
Fulfillment-ready product order
Fixed cavities guide the five-item packing sequence and presentation, subject to tolerance control, removal access, actual packing time, and transit testing.
Outer-box baseline
E-flute fold-over corrugated mailer with 250gsm white-card face; BE-flute remains an alternative for heavier or more demanding routes.
Decoration direction
Four-color offset yellow exterior and blue water-pattern interior, followed by matte lamination and mounting to corrugated board.
Insert direction
One-piece E-flute die-cut product support with five verified cavities and no specified greyboard, EVA foam, or hollow frame.
Quote inputs
Five product samples or drawings, dimensions, filled weights, artwork, color targets, board route, quantity, shipping method, tests, and destination.
Details to prepare for factory review
All five product dimensions
Filled product weights
Physical samples or CAD drawings
Artwork files and color targets
E- or BE-flute preference
Target quantity
Direct-ship or outer-carton route
Delivery destination
Production FAQ
Questions ecommerce teams ask before sampling.
What structure does this custom skincare ecommerce mailer kit use?
It uses a fold-over corrugated mailer with a hinged lid, side flaps, formed tray walls, and a separate one-piece corrugated insert. The buyer specifies a self-locking formed-box route; the exact bottom locks, glue areas, and flat-delivery condition must be confirmed on the production dieline because the reference does not show the underside.
Is E-flute suitable for this skincare mailer kit?
E-flute is the stated standard because its relatively fine profile supports cleaner mounted print and a compact ecommerce presentation. Compare BE-flute when packed weight, stacking, long routes, or impact risk require more structure, then validate dimensional freight and product protection.
How is the integrated corrugated insert made?
One corrugated sheet is die-cut with product-shaped openings and converted to sit inside the mailer. It uses the corrugated board itself for positioning and cushioning, without a specified greyboard core, EVA foam layer, or hollow frame.
What measurements are needed for the five insert cavities?
Provide maximum body dimensions, cap and pump profiles, carton dimensions, filled weights, critical label areas, preferred orientation, loading direction, retention needs, and removal clearance for every item. Tolerances should be approved with production-equivalent samples.
How are the yellow exterior and blue interior printed?
The stated route uses four-color offset printing on white card, followed by mounting to corrugated board. Approve the yellow coverage, repeat pattern, blue water graphic, English copy, sheet alignment, score cracking, and inside-to-outside registration on a converted proof.
Does the box need matte lamination?
Matte lamination is part of the supplied specification. It can control sheen and add surface protection, but film adhesion, rubbing, fold whitening, label adhesion, and any plastic-reduction goal should be reviewed before final approval.
Can the same structure hold a different skincare set?
The outer mailer may support related sets when the packed size and weight remain suitable, but each product arrangement needs a verified insert layout. A new cavity pattern or modular insert may be required when bottles, tubes, cartons, or removal paths change.
What information is needed to quote this skincare ecommerce mailer kit?
Send all five product samples or drawings, dimensions, filled weights, artwork, finished internal size if known, E- or BE-flute preference, 250gsm white-card requirement, matte-film target, quantity, delivery destination, shipping method, and requested transit tests.
